FEATURES
Advanced Electric Powertrain & Long Range

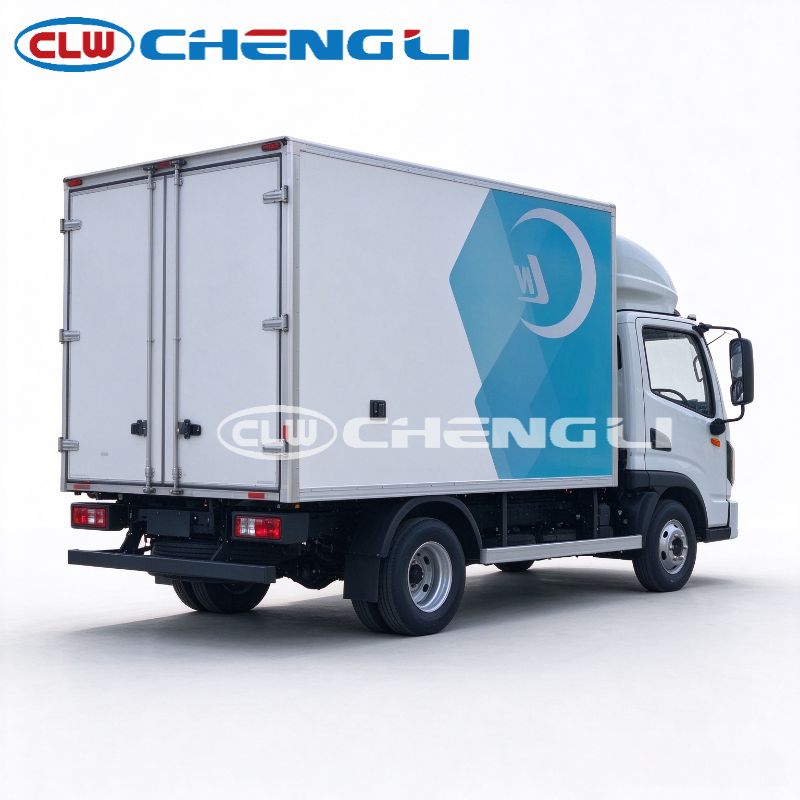

The 4.5t Electric Refrigerated Truck features a high-voltage 605V system powered by a 133.947 kWh LFP (Lithium Iron Phosphate) battery and a 120 kW PMSM motor. It delivers a massive 680 km range (constant speed) and supports 30%-80% DC fast charging in just 0.5 hours, ensuring highly Efficient and Zero-Emission Logistics.
High-Performance F-Class Refrigeration System
Equipped with an F-Class refrigeration unit (Model CL-660 EV, R404A refrigerant) and a 1900 m³/h air volume, this 4.5t Electric Refrigerated Truck rapidly cools down to -20°C in just 80 minutes. Its 20.9 m³ cargo box, made with inner/outer fiberglass and XPS insulation, perfectly preserves frozen cargo.
Self-Developed Lightweight & Durable Chassis
Built on a specially designed logistics chassis, the 4.5t Electric Refrigerated Truck utilizes CAE-optimized, high-strength steel to reduce weight (3,390 kg curb weight) while maximizing payload capacity (975 kg). The chassis features a 6-year anti-corrosion warranty, ensuring structural durability and optimal energy efficiency
Smart, Safe & Comfortable Driving Experience
Designed for ultimate driver convenience, the 4.5t Electric Refrigerated Truck features IP68-rated battery and motor protection, Smart connectivity, EPB+AutoHold, and an electronic parking brake. The spacious cabin includes an automatic transmission , electric AC, and multi-function steering wheel for a superior commercial driving experience.
SPECIFICATIONS
EQUIPMENT/VEHICLE | 4.5t Electric Refrigerated Truck |
Overall Dimensions | 5995x2260x3250 mm |
GVW | 4495kg |
Wheelbase | 3360mm |
Battery Capacity | 133.947 kWh |
Range (Constant Speed Method) | 680 km |
Charging Time (30%-80%) | 0.5 h (DC Fast Charge) |
Cargo Box Dimensions | 4080x2100x2100 mm |
Cooling Capacity | 4500 W (-20°C to +30°C) |
