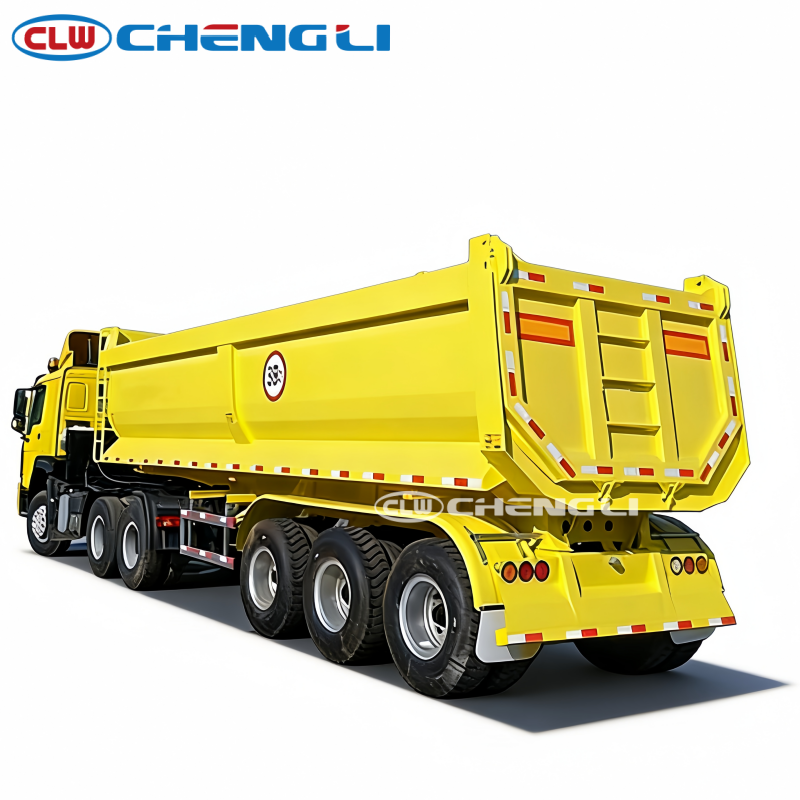

Dump Truck Semi Trailer Rear Lifting 40 Tons Tipper For Sale

40 Tons dump truck semi trailer produced by CLW Group is widely applied worldwide. Engineered for bulk material transportation, the side dump trailer capacity proves to be both dependable and efficient, making widely used across numerous industrial applications. One of the major design strengths is the stable distribution of weight during motion. By keeping the center of gravity balanced and minimizing abrupt shifts, the side dump trailer greatly improves operational stability and helps to prevent rollover incidents. During the unloading phase, materials are discharged uniformly.

FEATURES

High-Strength Chassis Frame: Built with high-strength alloy steel to provide excellent load-bearing capacity and torsional resistance.

Standardized Electrical System: Dump truck semi trailer features an international-standard electrical system with LED lighting for improved nighttime safety.

HYVA Hydraulic Lifting System: the semi trailer is equipped with trusted HYVA hydraulic cylinders to ensure stable, safe, and efficient lifting performance.

Wear-Resistant Cargo Box: The tipper trailer cargo box is built with wear-resistant steel, ideal for transporting stones, ores, and heavy materials.

SPECIFICATIONS

BASIC INFORMATION
Model	CLW 40 Tons Dump Truck Semi Trailer tri-Axle Side Lifting Tipper
Overall Dimensions (mm)	8000x2500x3200
Payload (kg)	32000
GVW (kg)	40000
Curb Weight (kg)	8000
Shape	Square Shape/U shape (customized)
DUMP BODY
Side Wall Height	1400 mm
Body Materials	Q235 Carbon Steel/T700 high strength structure steel (Optional)
Frame Body	Q345B High Strength Structure Steel
Dump Box Size	6200×2450×1400 mm
Bottom Plate	6/8/10/12 mm (Optional)
Side Plate	6/8/10 mm (Optional)
