FEATURES

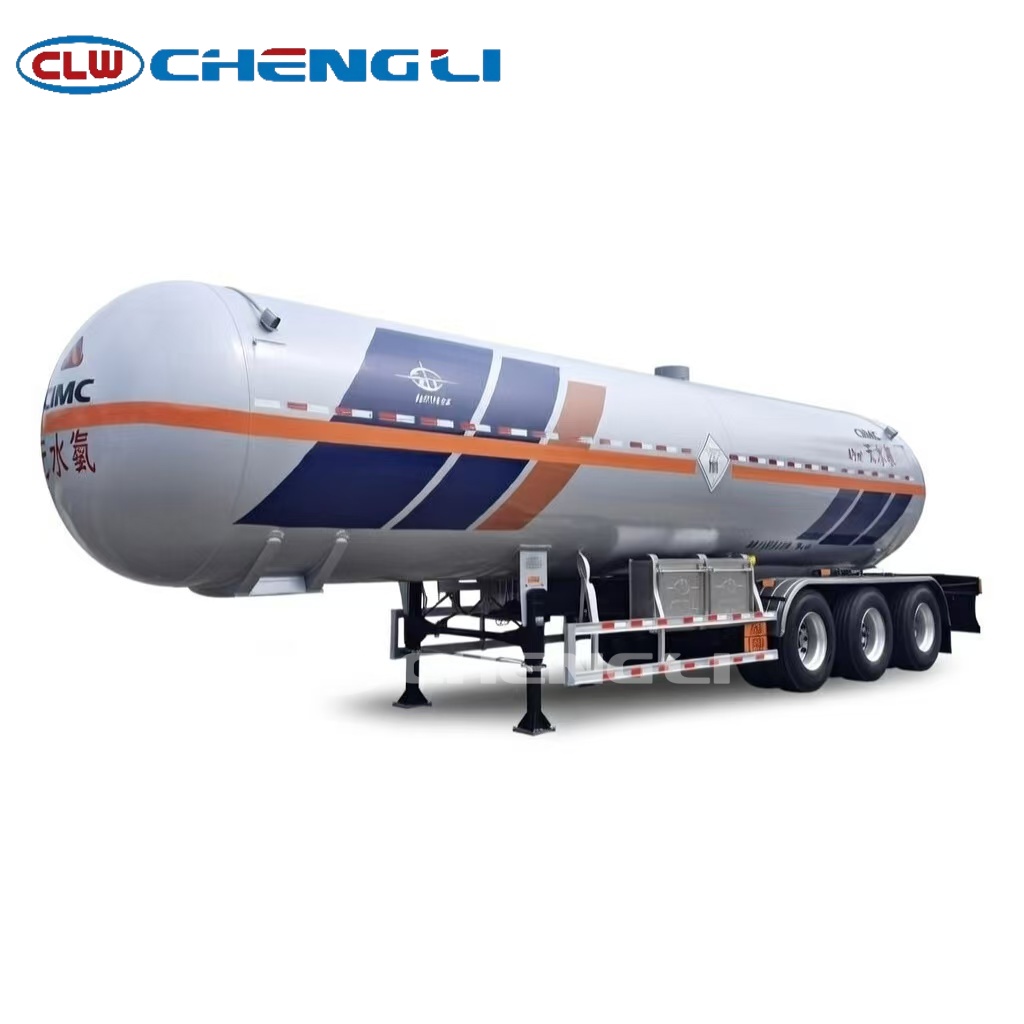

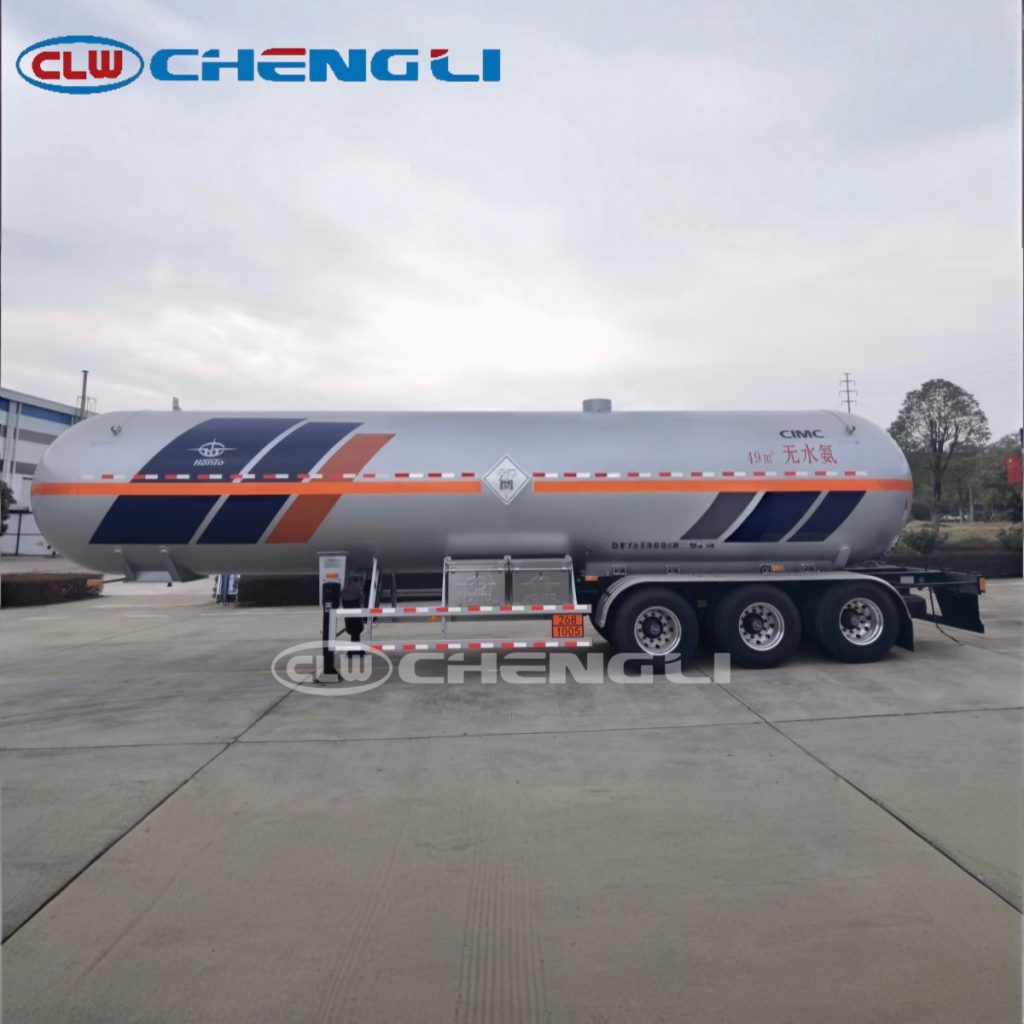

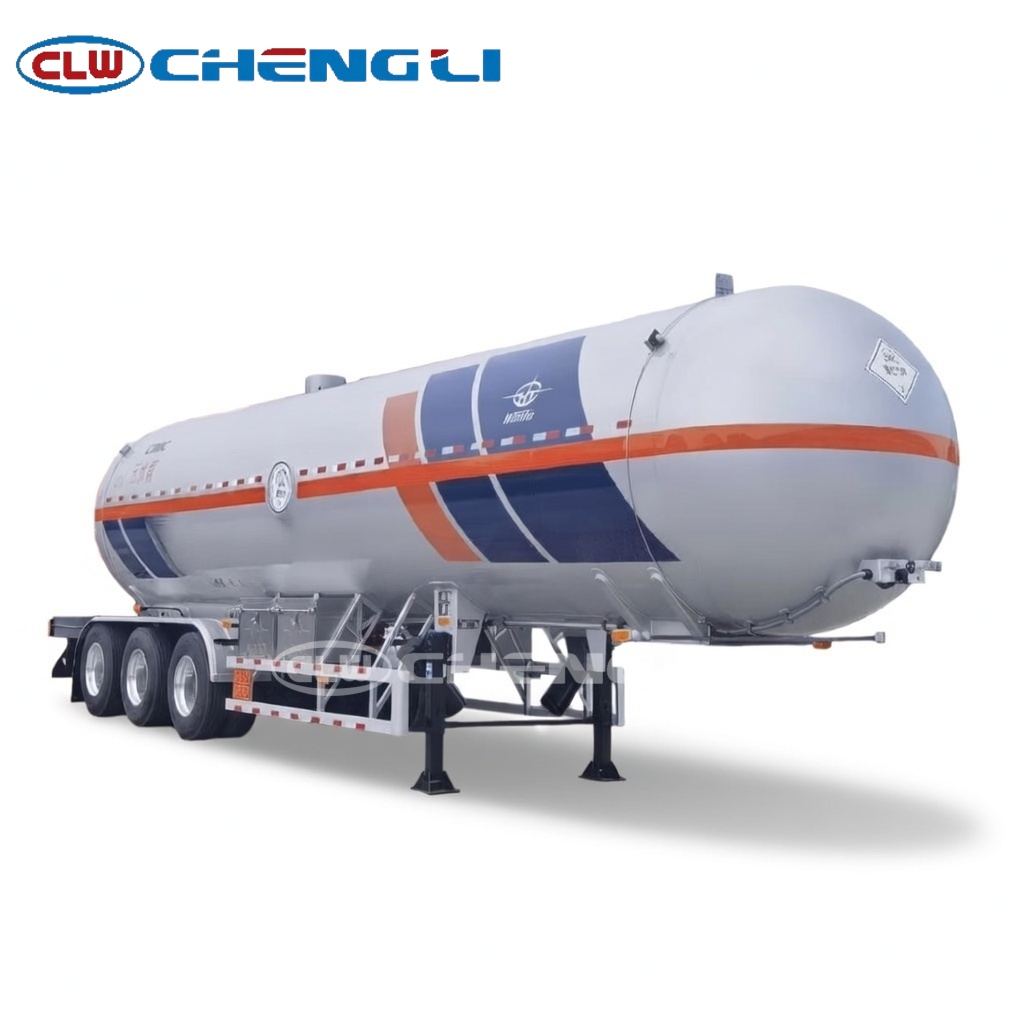

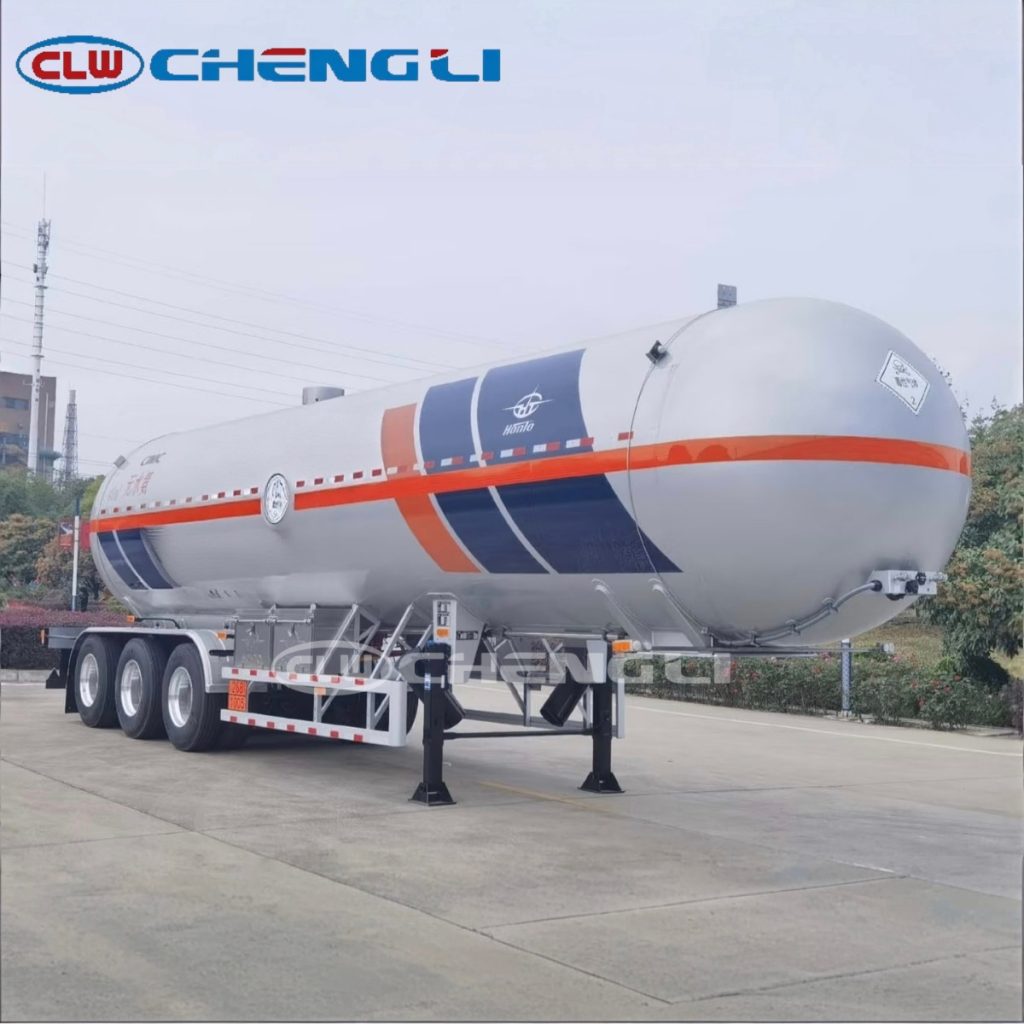

41000L LPG Tank Semi Trailer for Liquefied Gas Transportation
The 41000L LPG Tank Semi Trailer is designed for the safe and efficient transportation of liquefied petroleum gas (LPG). Built with a high-strength pressure vessel tank and a durable trailer structure, this tanker provides reliable performance for large-scale gas transportation. It is widely used by energy logistics companies, gas distribution networks, and petroleum transportation providers.
With a transport capacity of 41,000 liters, this LPG tank trailer is suitable for bulk LPG delivery over long distances. The optimized tank structure improves safety while ensuring efficient loading and unloading operations. The semi trailer is engineered to meet strict safety and performance requirements for liquefied gas transport.
High-Strength Pressure Vessel Tank
The tank of the LPG semi trailer is manufactured using high-quality steel designed specifically for pressure vessel applications. This construction ensures the tank can safely withstand the pressure required for liquefied gas transportation.Advanced welding technology and strict quality control processes help guarantee the integrity and durability of the tank. The internal structure is designed to maintain stability during transportation while protecting the tank from structural stress. This ensures reliable operation even in demanding transportation conditions
Large Capacity for Efficient LPG Logistics
One of the main advantages of the 41000L LPG Tank Semi Trailer is its large transport capacity. The high-volume tank allows operators to transport more liquefied gas in a single trip, reducing transportation frequency and improving overall logistics efficiency.

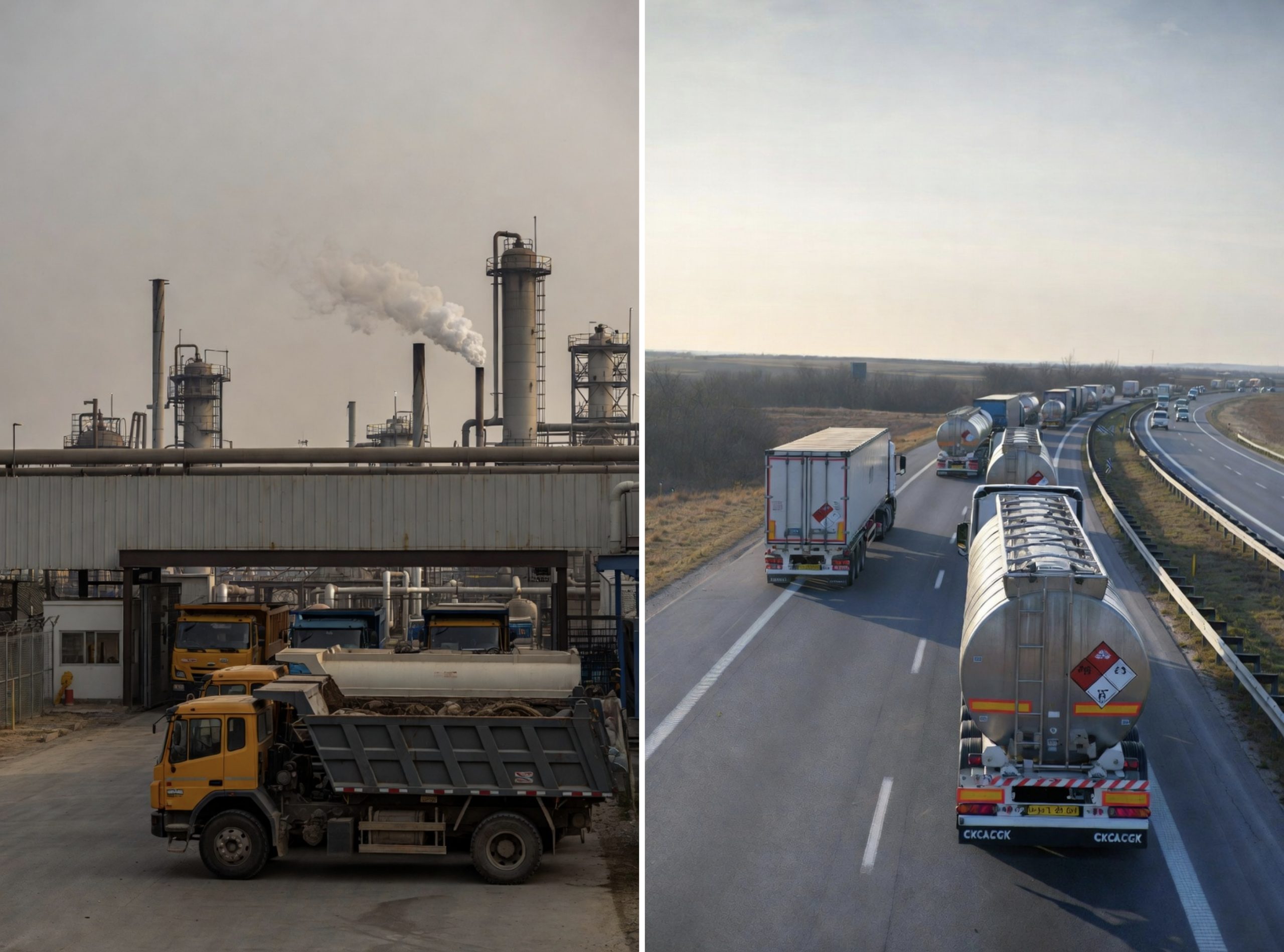

This makes the trailer an ideal solution for:
- LPG distribution companies
- Gas storage and transportation providers
- Energy logistics companies
- Petroleum and gas industry transportation projects
By maximizing transport capacity, businesses can significantly reduce operating costs while maintaining efficient supply chain operations.
SPECIFICATIONS
Chengliwei CLW9405GYQD Liquefied Gas Transportation Semi-Trailer Main Technical Parameters | |||
Dimensions. | 11115×2490×3700(mm) | Container size. | ××(mm) |
Total mass. | 40000 (Kg) | Mass utilization factor. | |
Overall mass. | 11500(Kg) | Rated mass. | 28500 (Kg) |
Trailer mass: 1.5 kg | (Kg) | Semi-trailer saddle. | 16000 |
Cab. | Front passenger. | person | |
Rated passenger capacity: | person | Anti-lock system: | yes |
Approach/Departure Angle: | -/18(°) | Front suspension/rear suspension: | -/1745(mm) |
Axle load: | -/24000 (3-axis group) | Wheelbase: | 5300+1310+1310(mm) |
Number of axes: | 3 | Top speed: | (km/h) |
Fuel consumption: | (L/100Km) | Number of spring tabs: | -/-/-/- |
Tire count: | 12(个) | Tire specifications: | 11.00R20 12PR,12R22.5 12PR |
Front wheelbase: | -(mm) | Rear wheelbase: | 1840/1840/1840(mm) |
