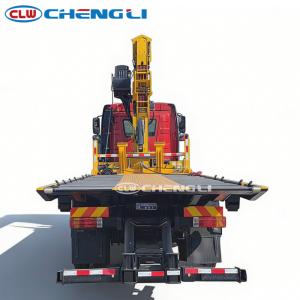

6X2 FAW Wrecker Truck with 5 Straight Sections Boom 25tons Vehicle Towing for Road Rescure

6X2 FAW Wrecker Truck with 8-Ton Crane is a heavy-duty road recovery and towing solution designed for efficient vehicle rescue and transport. Equipped with a 4-section straight boom crane, it provides a maximum lifting capacity of 8 tons, a lifting height of 14.7 meters, and a working radius of 13.05 meters, ensuring powerful performance in complex recovery operations. The 360-degree slewing crane system allows flexible lifting and positioning, while the wide outrigger span (5270 mm) guarantees excellent stability during operation. Built with durable Q235 carbon steel, this FAW wrecker truck / recovery tow truck is ideal for highway rescue, accident recovery, vehicle towing, and roadside assistance services.

FEATURES

1. High-Strength Telescopic Straight Boom

Made from reinforced steel with a strong lifting capacity, the wrecker truck is suitable for recovering various types of vehicles. The boom provides stable performance with smooth hydraulic extension, ensuring precise lifting even in tight areas.

2. Heavy-Duty Underlift Towing System

The hydraulic underlift of the 6×2 FAW wrecker truck supports multiple vehicle sizes and offers reliable clamping and lifting force. It ensures secure towing during long-distance transport and harsh road conditions.

3. Enhanced Hydraulic System with PTO

Equipped with a high-efficiency PTO-driven hydraulic pump, the towing truck enables coordinated actions such as lifting, slewing, telescoping, and towing. The system delivers consistent power output for heavy-duty rescue tasks.

4. Reinforced Sub-Frame & Extended Outriggers

6X2 FAW wrecker truck adopts a strengthened sub-frame with extended outriggers to maintain excellent stability during lifting. This structure reduces chassis stress and improves overall safety.

SPECIFICATIONS

BASIC INFORMATION
Model	FAW Wrecker Truck with 4 sections Telescopic Straight Boom Crane
Overall Dimensions (mm)	12200×2550×3800
GVW (kg)	25000
Curb Weight (kg)	18800
Emission Standard	Euro 2/3/4/5/6
Maximum Speed (km/h)	89

BOOM SYSTEM
Boom Type	Straight Boom
Boom Sections	4
Maximum Lifting Capacity (t)	8
Maximum Lifting Height (m)	14.7
Maximum Wroking Radius (m)	13.05
Slewing Angle	360 Degree
Outrigger Span (mm)	5270
