FEATURES

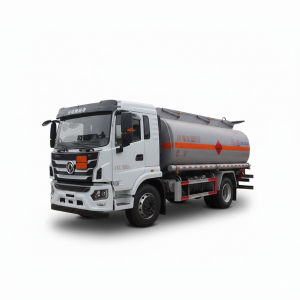

Large 9900L Tank Capacity for Efficient Fuel Delivery
This 9900L fuel tank truck is designed for high-volume diesel and oil transportation, reducing refill frequency and improving delivery efficiency for industrial and commercial projects.
Reliable Dongfeng Chassis with 6600kg Payload
Built on a durable Dongfeng chassis, this fuel tanker truck offers a strong 6600kg payload capacity, ensuring stable performance for long-distance fuel transport and heavy-duty operations.
Safe & Durable Carbon Steel Tank Structure
The industrial fuel tanker body is manufactured with high-strength carbon steel and professional welding technology, ensuring safe fuel storage and leak-proof operation during diesel delivery.
Export-Ready Configuration for Global Markets
This Dongfeng 9900l fuel tank truck is built to meet international export standards, making it ideal for fuel distribution companies, construction sites, and mining operations worldwide.
SPECIFICATIONS
Main Parameters of Chengli CL5122GYY6 Fuel Truck | |||
Dimensions | 6840,7150×2200,2400×2800,2900(mm) | Maximum density of the quasi-transport medium | 700 kg/m3 |
Total mass | 11950(Kg) | Total tank capacity | 9.9 cubic meters |
Overall mass | 5150(Kg) | Effective volume of tank | 9.43 cubic meters |
Trailer mass: 1.5 kg | (Kg) | Rated mass. | 6605,6670(Kg) |
Front passenger | 3,2(P) | Anti-lock system: | Yes |
Approach/Departure Angle: | 24.5/13(°) | Front suspension/rear suspension: | 1130/1910,1280/2070(mm) |
Axle load: | 4360/7590 | Wheelbase: | 3800,3950,4050,4400(mm) |
Number of axes: | 2 | Top speed: | 80(km/h) |
Fuel consumption: | 21.2,21.2,21.2,21.2,21.2,20.29,19.39,19.07(L/100Km) | Number of spring tabs: | 8/10+7,8/8+6 |
Tire count: | 6 | Tire specifications: | 245/70R19.5 16PR,8.25R20,255/70R22.5 16PR,9R22.5,8.25R20 16PR,9R22.5 14PR |
Front wheelbase: | 1755,1886,1770,1801(mm) | Rear wheelbase: | 1586,1650,1800,1630,1802(mm) |
Steering form: | steering wheels | Tank external dimensions | 4800×1950×1300(mm) |
Engine Parameters | |||
Engine Model | Engine Manufacturers | Discharge volume (ml) | Power (kw)/horsepower (PS). |
CY4SK261 | Dongfeng Chaoyang Chaochai Power Co. | 3856 | 125/170 |
D25TCIF1 | Kunming Yunnei Power Co. | 2499 | 110/149 |
D30TCIF1 | Kunming Yunnei Power Co. | 2977 | 125/170 |
D40TCIF1 | Kunming Yunnei Power Co. | 4052 | 135/183 |
YCY30170-60 | Guangxi Yuchai Machinery Co. | 2970 | 125/170 |
Vehicle Fuel Parameters | |||
Fuel type | Diesel Fuel | Criteria | GB17691-2018 National VI |
Chassis emission standards | National Six | ||
Reflective Sign Parameters | |||
Marking Company | Changzhou Huarisheng Reflective Material Co. | Trademarks | Luminous, 3M |
Marking Model | TM1200-1,983D | ||
