FEATURES

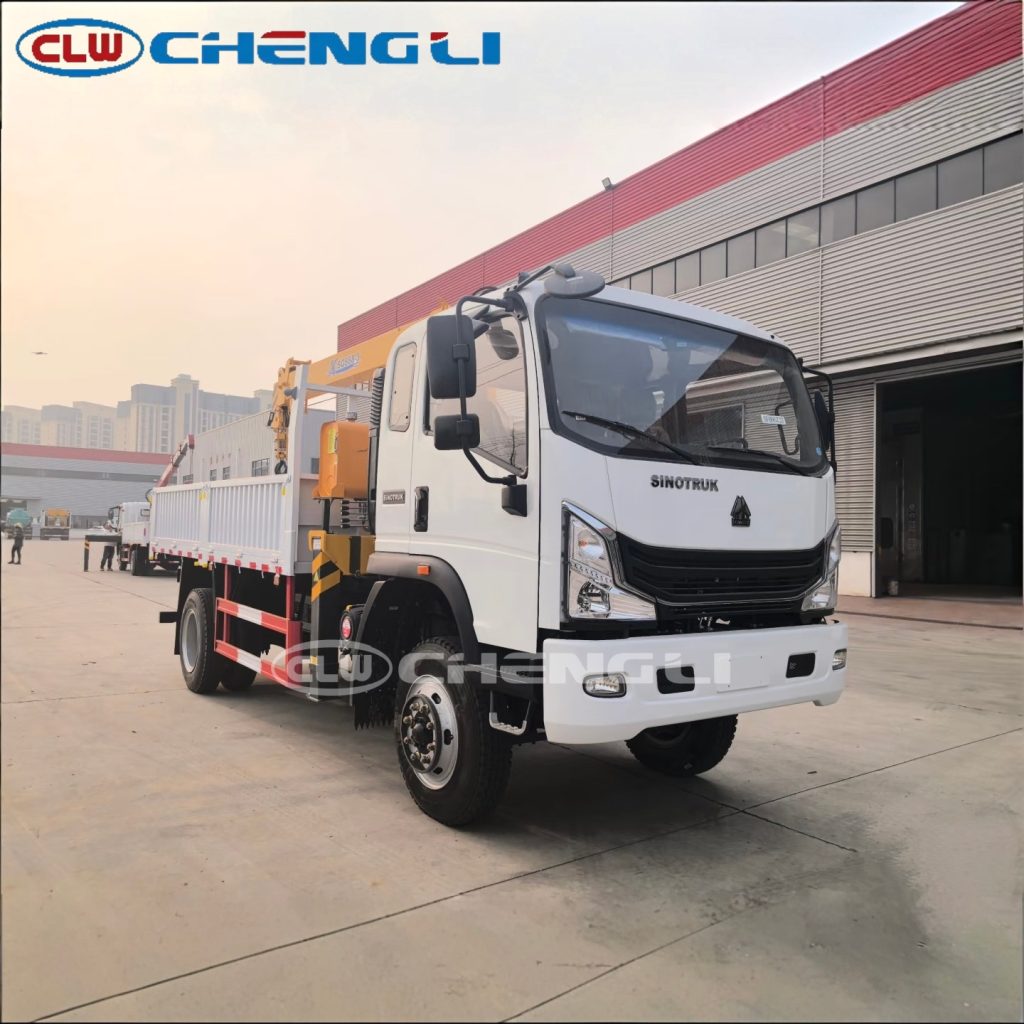

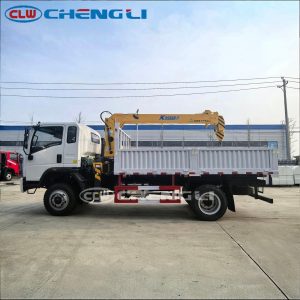

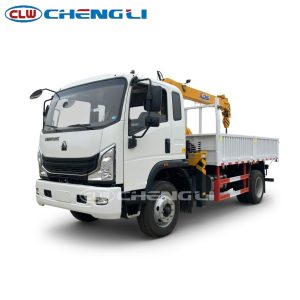

Reliable SINOTRUK HOWO Chassis
Built on the durable HOWO light-duty truck chassis, the HOWO 3.2-ton truck mounted crane offers excellent stability, strong load-bearing capacity, and dependable performance for various lifting and transport tasks.
Powerful 3.2 Ton Hydraulic Crane
The HOWO truck mounted crane features an integrated hydraulic system with a maximum lifting capacity of 3.2 tons, enabling efficient loading and unloading of heavy materials such as construction equipment, steel structures, and machinery parts.
Cargo Transport + Lifting in One Vehicle
The HOWO 3.2-ton truck mounted crane combines cargo transportation and lifting operations in one unit. This significantly reduces the need for additional equipment such as forklifts or mobile cranes, saving both time and operational costs.
Wide Range of Applications
This HOWO 3.2-ton truck mounted crane is widely used in construction projects, logistics transport, factory equipment installation, municipal engineering, and warehouse operations, offering flexible and efficient material handling solutions.
SPECIFICATIONS
| Item | Specification |
|---|---|
| Vehicle Model | CLW Truck Mounted Crane |
| Chassis Brand | SINOTRUK HOWO |
| Crane Lifting Capacity | 3.2 Tons |
| Crane Type | Straight Boom / Optional Knuckle Boom |
| Maximum Lifting Moment | 6.3 T.M |
| Maximum Working Radius | 8.5 m |
| Maximum Lifting Height | 10.5 m |
| Cargo Box Length | 4.2 m |
| Engine Power | 116 HP |
| Fuel Type | Diesel |
| Transmission | Manual |
| Wheelbase | 3280 mm |
| Drive Type | 4×2 |
| Tire Specification | 7.50R16 |
| Control System | Hydraulic |
| Outriggers | Hydraulic Stabilizing Legs |
