FEATURES

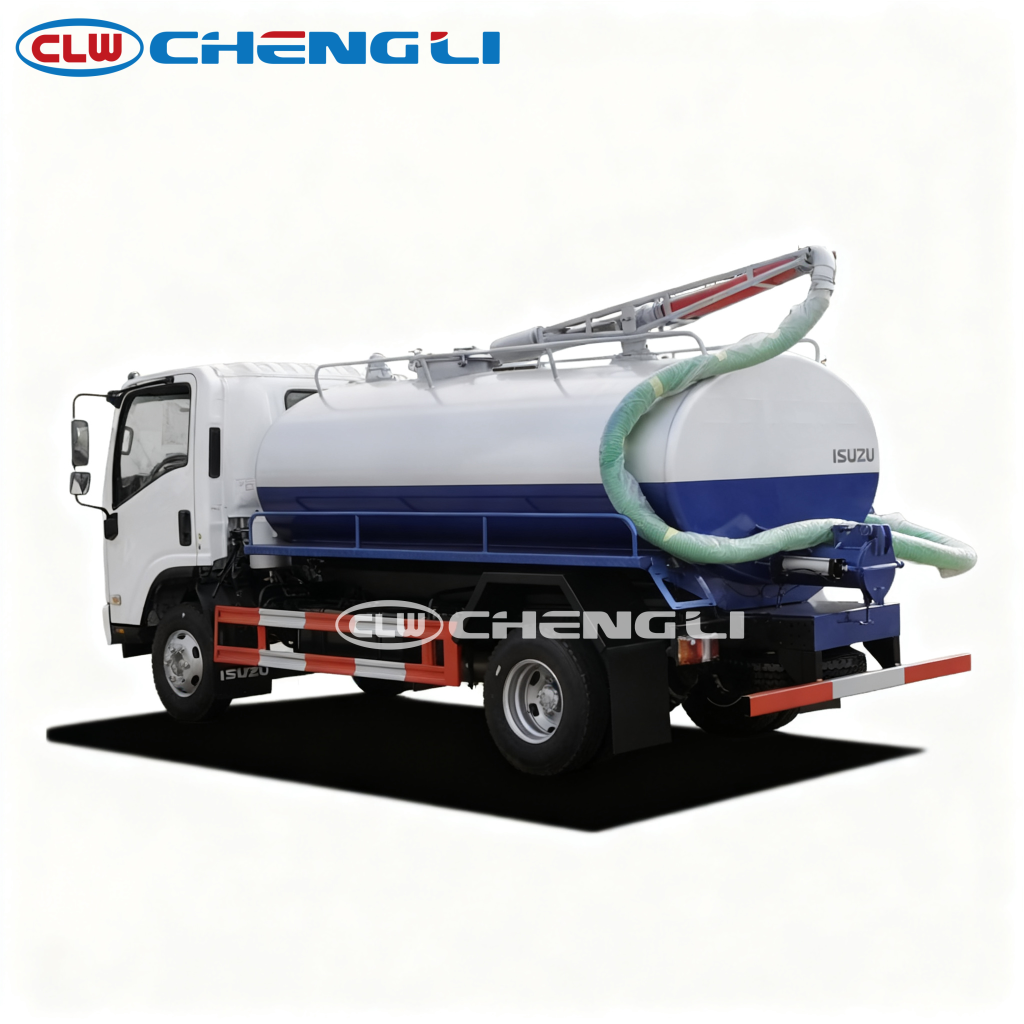

1. High Stength steel sealed tank:The sludge tank has a capacity of approximately 6 cubic meters. Constructed from high-quality steel plate, the Isuzu 6cbm Sewage Suction truck tank body incorporates strategically designed anti-wave reinforcement plates in the middle section. The front section features a turtle-back pressure-resistant head.
2.High-performance vacuum pump: The sewage pump utilizes the Shandong Zibo SK-12 water-circulating vacuum pump, featuring high precision and powerful suction. Its pump head incorporates an oil seal design to prevent dripping.
3. Easy operation and quick unloading system: All operating systems are neatly arranged inside the control panel, each accompanied by operating instructions and precautions.
4. Reliable chassis: Dongfeng, Foton, Isuzu, or other brands. All of these brands can be optimized to fit the Isuzu 6CBM Vacuum Sewage Truck.
SPECIFICATIONS
BASIC INFORMATION | |
Model | |
Overall Dimensions (mm) | 5995×2080×2640 mm |
Payload (kg) | 4245, 4180, 4045, 3980 |
GVW (kg) | 8270 |
Curb Weight (kg) | 3895, 4095 |
Max. Speed (km/h) | 88 |
Emission Level | Euro 2/3/4/5/6 |
The above mentioned figures are approximate.
