You need a truck that hauls cargo. You also need a crane that lifts heavy loads. A truck mounted crane with a hydraulic boom combines both functions into a single machine—so you don’t have to choose between transport and lifting.
On most job sites, that means less downtime. No waiting around for a separate crane to show up. No moving the same materials twice with extra hands. The truck rolls in, carries the load, lifts it, and puts it exactly where it belongs.
These units are a common sight on construction sites, road crews, farms, ports, warehouses, utility repairs, and general material handling. They cut wait times, reduce labor costs, and simplify loading and unloading across the board.
Still, picking the right model goes far beyond asking, “What’s the max tonnage?” You’ll also need to weigh boom style, working radius, chassis durability, stabilizer setup, safety systems, and how well the supplier backs you up.
This guide walks you through 6 practical tips to help you compare different truck-mounted crane options and zero in on a model that truly fits your daily operations.
Table of Contents
What Is a Truck Mounted Crane with a Hydraulic Boom?
A truck mounted crane with a hydraulic boom is a truck with a crane mounted on the chassis. The hydraulic system powers the boom. It helps the crane lift, swing, fold, extend, and place materials.
You may hear different names for the same type of vehicle. Some people call it a boom truck. Some call it a crane truck, hydraulic boom crane, or truck mounted crane.
It is commonly used for:
- Loading and unloading cargo
- Lifting steel, timber, pipes, and pallets
- Moving equipment on job sites
- Road work and power line maintenance
- Farm, warehouse, port, and factory work
The main benefit is simple: one vehicle can carry and lift materials. This helps reduce extra equipment, extra labor, and extra waiting time.
Best 6 Tips to Buy Truck Mounted Crane with A Hydraulic Boom
Before buying a truck mounted crane, do not start with price alone. Start with your real job.
Check these points first:
- What material do you lift most often?
- How heavy is each load?
- How far does the crane need to reach?
- Is the site open or narrow?
- What road conditions will the truck face?
- Do you need a straight boom or a knuckle boom crane?
- Can the supplier support spare parts and maintenance?
If these points are clear, choosing the right model becomes much easier.

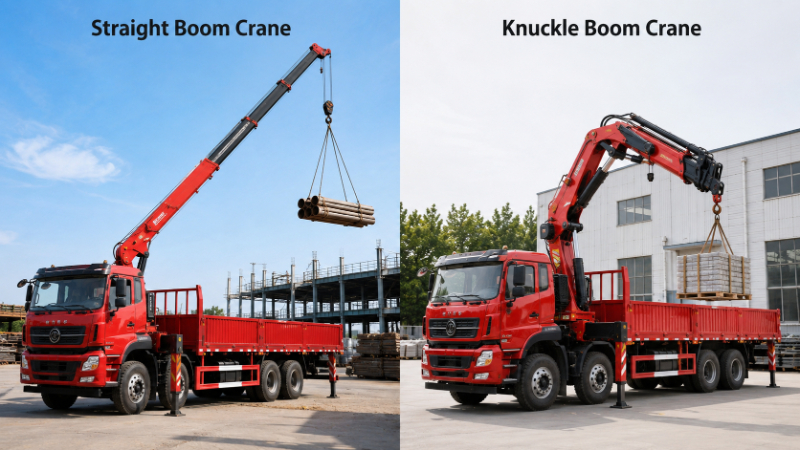

Tip 1: Choose the Right Boom Type
Not all crane booms work the same way. Before you compare prices, check the boom type first.
Straight Boom Crane
A straight boom extends in a straight line. It has a simple structure and is easy to understand.
This type works well when you need:
- Longer reach
- Higher lifting height
- Direct lifting
- Open job site space
It is often used for roadside work, utility jobs, and open construction sites.
Its main advantage is simple operation and good reach.
Knuckle Boom Crane
A knuckle boom crane folds like an arm. When not in use, it can fold into a smaller space. When working, it can move more flexibly.
A knuckle boom crane truck is often useful for:
- Narrow city streets
- Loading near buildings
- Urban delivery
- Tight construction sites
- Jobs with limited working space
Its main advantage is better movement in narrow or crowded areas.
How to Choose Between Them?
Choose a straight boom if you need reach and height.
Choose a knuckle boom crane if you need flexible movement in a smaller space.
Before you decide, check your cargo type, lifting height, working radius, road width, and loading area.
Tip 2: Match Lifting Capacity with Real Work
Lifting capacity is important, but many buyers read it the wrong way.
The maximum lifting capacity usually applies when the boom is close to the truck. When the boom extends farther, the lifting capacity becomes lower.
For example, a crane may lift 8 tons near the base. At a longer radius, it may lift much less.
So, do not only ask for the maximum lifting number. Ask how much the crane can lift at your real working distance.
Before buying, check:
- Normal cargo weight
- Maximum cargo weight
- Common lifting distance
- Daily lifting frequency
- Whether the load is stable or uneven
Do not push the crane to its limit every day. A safety margin helps protect the boom, hydraulic system, chassis, and operators.
A slightly stronger crane often gives better long-term use than a crane that works at full load all the time.

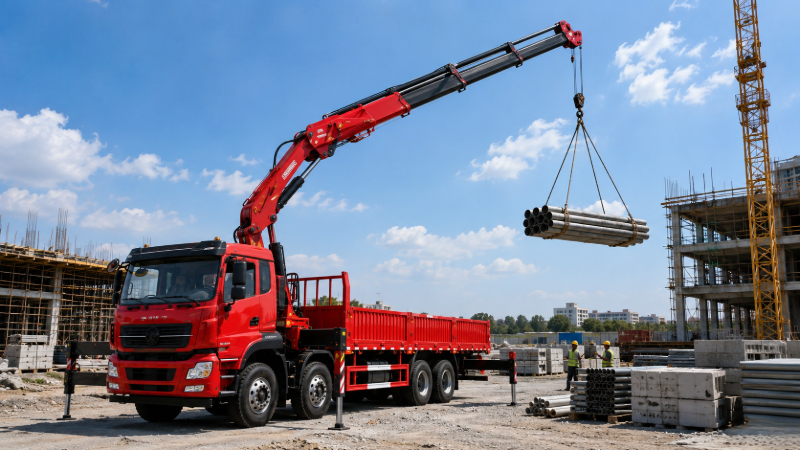

Tip 3: Check Working Radius and Lifting Height
Working radius means the horizontal distance from the crane center to the load. This point is easy to miss, but it has a big effect on real lifting work.
If the load is close to the truck, a smaller crane may be enough. If the crane must reach across a loading bay, over a ditch, or near a building, you need to check the load chart carefully.
Lifting height also matters. Some jobs only need ground-level loading. Other jobs require lifting materials to a platform, roof, second floor, or high storage area.
Before confirming the model, check:
- Maximum working radius
- Maximum lifting height
- Your most common lifting distance
- Truck parking space
- Outrigger space
- Loading and unloading direction
The goal is not to buy the biggest crane. The goal is to buy one that can reach your daily work area safely.
Tip 4: Match the Crane with the Right Truck Chassis
The crane is only half of the vehicle. The chassis is just as important.
The truck chassis carries the crane, cargo body, load, and lifting stress. If the chassis is too light, the whole vehicle may become unstable during lifting or driving.
Check these chassis points carefully:
- Gross vehicle weight
- Payload capacity
- Frame strength
- Axle capacity
- Wheelbase
- Suspension type
- Tire rating
- Engine power
- Brake system
For city delivery or light cargo, a standard chassis may be enough. For rough roads, mining sites, or heavy construction, you may need a heavy duty truck mounted crane with a stronger chassis.
A strong chassis gives better stability, better road performance, and lower long-term risk.
The best truck mounted crane is not always the biggest one. It is the one that matches your crane capacity, road conditions, cargo weight, and daily workload.

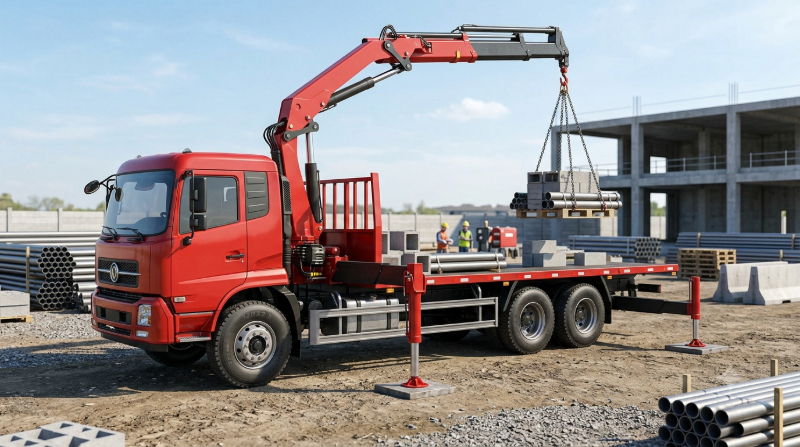

Tip 5: Check Stabilizers, Safety Features, and Controls
A crane truck must stay stable while lifting. This is why stabilizers matter.
Stabilizers, also called outriggers, support the truck during lifting. They help spread the weight and keep the vehicle steady.
Before buying, check:
- Outrigger width
- Outrigger strength
- Ground support area
- Manual or hydraulic operation
- Stability during lifting
Ground condition also matters. Soft soil, slopes, mud, and uneven roads can affect lifting safety. If your truck will work on rough job sites, tell the supplier early.
You can also ask about safety features, such as:
- Overload protection
- Emergency stop
- Hydraulic lock valves
- Warning devices
- Limit switches
- Stable control system
- Clear operation labels
Simple controls also help. Many buyers do not need complicated functions. They need a crane that workers can learn, use, and maintain without trouble.
Good safety design means less risk, easier operation, and better daily control.
Tip 6: Choose Reliable Truck Mounted Crane Manufacturers
The supplier matters more than many buyers think.
Good truck mounted crane manufacturers do not only send a price list. They ask about your work first. They need to know what you lift, how far you lift, where the truck works, and what road conditions you face.
Before buying, ask your supplier:
- Which boom type suits my work?
- What lifting capacity do I need at my working radius?
- Which chassis matches this crane?
- Can the cargo body be customized?
- What safety features are included?
- Are spare parts easy to get?
- Is maintenance simple?
- What export documents can you provide?
For overseas buyers, spare parts and maintenance support are important. A fancy design is not useful if it is hard to repair later.
A reliable supplier helps you avoid the wrong configuration. They recommend a crane truck that fits your market and your daily work.
Get a truck mounted crane quotation from CLW
Real Example: Choosing a Crane Truck for a Construction Site
Let’s say a contractor needs a crane truck for steel pipes, pallets, and small machines on a construction site.
At first, the buyer asks for the largest crane. More power sounds safer.
But after checking the site, the supplier finds a few important details:
- The road is narrow
- The lifting distance is not very long
- The cargo weight is medium
- The truck needs to move in and out many times a day
In this case, the largest crane may not be the best choice. It costs more. It is harder to move. It may also be more than the job needs.
A medium truck mounted crane with a hydraulic boom may work better. It can lift the materials, move more easily on the site, and cost less to operate.
This is a common case. Bigger is not always better. A suitable model can bring better site movement, lower purchase cost, and easier daily use.
Conclusion
In short, a truck-mounted crane with a hydraulic boom is a versatile two-in-one solution for construction, farming, logistics, and utility work.
But the right choice isn’t about the lowest price or the biggest number on paper. It comes down to your real working conditions—boom type, actual lifting performance across radius and height, chassis strength, stabilizers, safety features, and reliable supplier support.
Straight booms excel at reach, while knuckle booms shine in tight spaces, and heavy-duty models are better suited for rough terrain and demanding jobs. Choose based on your specific needs, not just the spec sheet.
Looking for a reliable truck mounted crane with a hydraulic boom for your project?
Contact CLW today. Tell us your lifting weight, working radius, cargo type, road conditions, and budget. We will recommend a practical truck mounted crane solution for your market.
Frequently Asked Questions
1. What is a truck mounted crane with a hydraulic boom?
It is a truck with a crane mounted on the chassis. The hydraulic system powers the boom, so the vehicle can lift, load, unload, and move materials.
2. Is it the same as a boom truck?
In many markets, yes. Some people call it a boom truck, crane truck, hydraulic boom crane, or truck mounted crane.
3. What is the difference between a straight boom and a knuckle boom crane?
A straight boom extends in a line. It works well for reach and simple lifting. A knuckle boom crane folds like an arm. It works better in tight spaces and gives more flexible movement.
4. How do I choose the right lifting capacity?
Check the cargo weight, working radius, lifting height, and daily workload. Do not choose only by the maximum lifting number. Always leave a safety margin.
5. When should I choose a heavy duty truck mounted crane?
Choose it when you work on rough roads, carry heavy cargo, or need high-frequency lifting in mining or large construction projects. It usually needs a stronger chassis, better axles, tougher tires, and a stable hydraulic system.
6. What should I ask truck mounted crane manufacturers before buying?
Ask about boom type, lifting capacity at different radii, chassis brand, stabilizers, safety features, spare parts, maintenance support, and export requirements.
