Not all dump trucks are created equal—and choosing the wrong one can stall your project and inflate your budget. The truth is, the types of dump trucks available today are each engineered for vastly different conditions. A machine that performs flawlessly on a highway project may fail on a muddy mine site.
In this guide, we break down the four primary types of dump trucks—Standard, Heavy Duty, Mining, and Articulated (ADT)—by their real-world performance, helping you match the right machine to your specific terrain, payload, and project goals.
Table of Contents

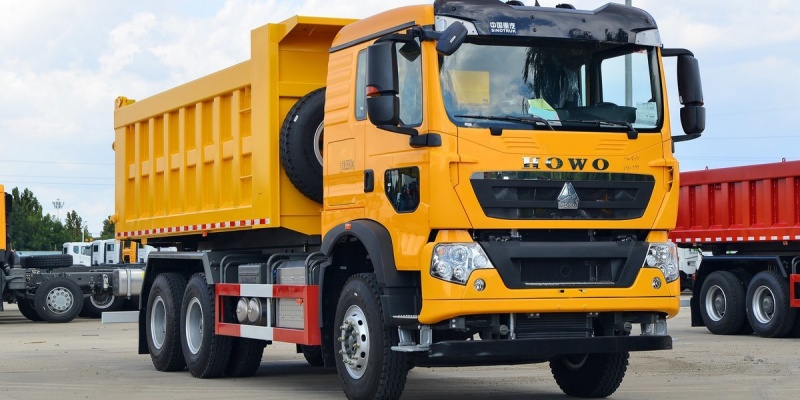

1. Standard Dump Truck (Rigid)
Overview
A standard dump truck is the most common type used worldwide. It usually consists of a conventional truck chassis with a hydraulic dumping body mounted on the rear. This type is widely used because it offers a good balance between cost, flexibility, and transportation efficiency.
(Note: In many international markets, these are referred to as “tipper trucks” or “rigid dump trucks” to clearly contrast them with articulated models.)
Features of Standard Dump Trucks
- Conventional Chassis Design: Standard dump trucks use a rigid chassis structure that provides good road stability, simple maintenance, and easy access to spare parts.
- Hydraulic Dumping System: The hydraulic cylinder lifts the cargo body, allowing materials to be unloaded quickly. Common transported materials include sand, gravel, soil, construction waste, and asphalt.
- Flexible Configurations: Standard dump trucks are available in 4×2, 6×4, and 8×4 configurations with different payload capacities.
Benefits of Standard Dump Trucks
1. Versatile Applications
Standard dump trucks can be used in many industries, making them ideal for residential construction, road projects, landscaping, municipal engineering, and agricultural transportation.
2. Cost-Effective Initial Investment
Compared with specialized heavy-duty models, standard dump trucks usually require a lower initial investment, offering excellent cost-effectiveness for everyday fleets.
3. Easy Maintenance
Because they use common truck chassis, spare parts are easier to find, repairs are simpler, and overall maintenance costs remain low.
Limitations
- Lower payload capacity compared with heavy-duty and mining models.
- Not ideal for extreme, uncompacted off-road terrain.
- Limited performance under continuous, maximum heavy-loading cycles.

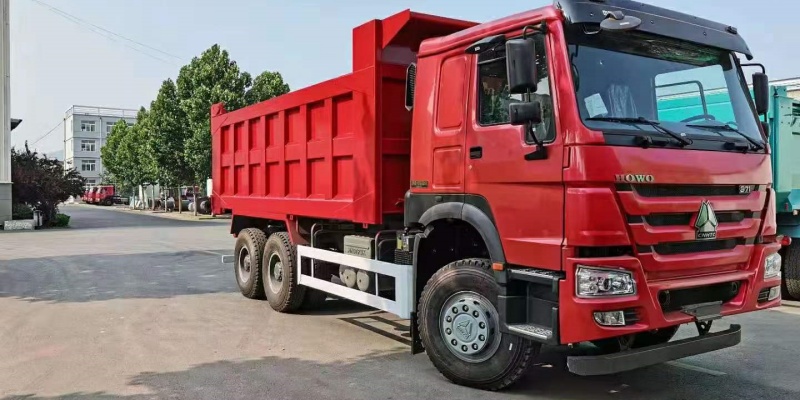

2. Heavy Duty Dump Truck
Overview
A heavy duty dump truck is designed for demanding transportation tasks where higher payload capacity and stronger durability are required. Compared with standard models, heavy duty dump trucks feature reinforced structures, more powerful engines, and stronger suspension systems. They are commonly used in large construction projects, quarries, and industrial transportation.
Features of Heavy Duty Dump Trucks
- Reinforced Chassis: The chassis is engineered specifically to handle heavier loads and longer working hours, resulting in higher durability, better load resistance, and a longer service life.
- Powerful Engine Performance: Engine configurations typically range from 300 to over 600 horsepower, with a strong emphasis on high torque output (often exceeding 2,000 Nm) to ensure excellent gradeability and starting ability under full load.
- Larger Payload Capacity: Compared with standard trucks, heavy-duty models can transport significantly more material per trip. This translates directly to fewer cycles, reduced fuel consumption per ton, and lower overall labor costs.
Benefits of Heavy Duty Dump Trucks
1. Higher Productivity
A larger payload means more materials moved per working cycle, which directly accelerates project timelines and efficiency.
2. Better Durability
Heavy-duty components and high-torque drivetrains allow continuous operation under harsh, demanding site conditions.
3. Suitable for Large Projects
They are perfectly suited for the rigorous infrastructure demands of building highways, dams, airports, and large construction sites.
Limitations
- Higher initial purchase price.
- Increased fuel consumption under maximum load.
- Require more robust, structured maintenance support.
- Less suitable for tight, narrow urban roads.
Typical Applications
- Large construction projects
- Quarry operations
- Infrastructure development
- Heavy industrial material transportation

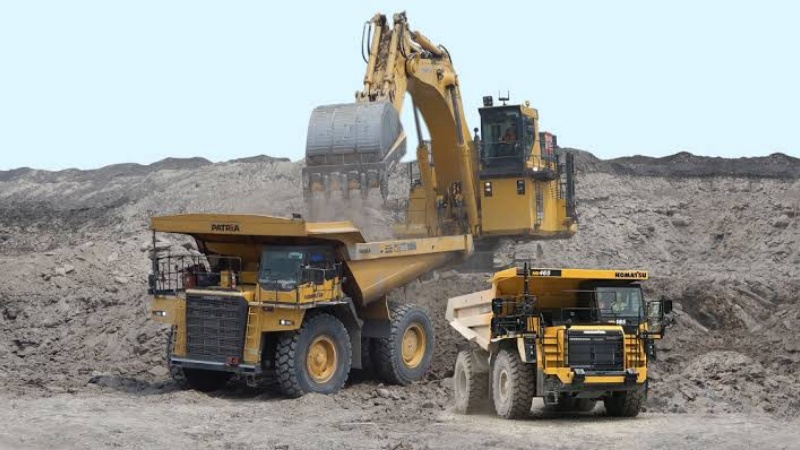

3. Mining Dump Truck (Off-Highway)
Overview
A mining dump truck is specially designed for the most demanding transportation environments on earth. Unlike standard on-road trucks, mining dump trucks operate strictly within open-pit mines, massive quarry sites, and heavy industrial extraction projects where extreme terrain and continuous, brutal heavy-duty loading are the norm.
Features of Mining Dump Trucks
- Extremely Strong Structure: Mining environments create massive mechanical stress. These trucks feature heavily reinforced frames, heavy-duty planetary axles, and ultra-robust suspension systems.
- Advanced Heavy Drivetrains: Unlike standard road trucks, massive mining dump trucks often utilize diesel-electric drive systems for immense traction and continuous torque. Payloads range from 50 tons to over 400 tons per cycle, allowing a single trip to replace a fleet of smaller trucks.
- Off-Highway Optimization: They feature massive off-road tires and are strictly engineered for dedicated haul roads within mine pits. Due to their immense size and weight, they are strictly prohibited from traveling on public roads.
Benefits of Mining Dump Trucks
1. Maximum Transportation Efficiency
Their immense payload capacity drastically minimizes the total number of trips required to clear overburden or transport valuable minerals.
2. Excellent Durability
They are built structurally to withstand 24/7 continuous operation, severe impacts from heavy-duty loading shovels, and hostile environments.
3. Reduced Operating Cost Per Ton
Although the initial purchase cost is exceptionally high, moving vast quantities of material per cycle substantially reduces the long-term operating cost per ton.
Limitations
- Massive initial financial investment.
- Require highly specialized, professional on-site maintenance crews.
- Completely restricted from public highways (must be assembled on-site).
- Strict operating requirements and specialized driver training required.
Typical Applications
- Open-pit mining
- Megaquarries
- Large-scale mineral transportation
- Industrial extraction projects

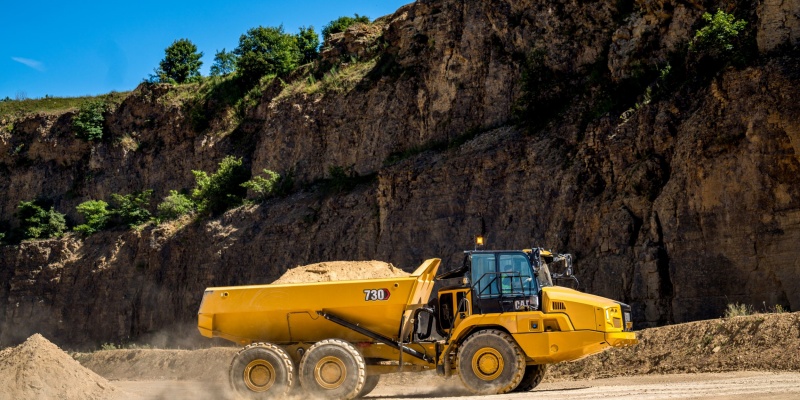

4. Articulated Dump Truck (ADT)
Overview
An articulated dump truck (ADT) is engineered specifically for volatile terrain where traditional rigid-frame trucks face severe mobility issues. It features a unique permanent articulation joint between the forward cab and the rear dump body, ensuring all wheels maintain contact with the ground even on highly uneven surfaces.
Features of Articulated Dump Trucks
- Flexible Articulation System: The central oscillating joint allows the truck to articulate and rotate, delivering a tight turning radius and superb terrain adaptation.
- All-Terrain Performance: They are optimized to perform exceptionally well in thick mud, steep slopes, soft sand, and completely unpaved, swampy ground.
- Independent Suspension: Many modern ADTs use advanced independent suspension systems to maximize stability, tractive effort, and operator comfort.
Benefits of Articulated Dump Trucks
1. Excellent Off-Road Ability
They can continuously operate on treacherous, low-traction sites where conventional rigid trucks would immediately sink or lose traction.
2. Better Stability
The articulated joint lowers the risk of chassis twisting and dramatically improves vehicle control, preventing rollovers on uneven slopes.
3. Suitable for Changing Conditions
They excel in early-stage infrastructure projects where dedicated haul roads have not yet been built and weather conditions create unpredictable ground surfaces.
Limitations
- Increased mechanical and maintenance complexity due to the articulation joint.
- Higher cost for specialized replacement parts.
- Poor on-road performance and limited top speed (usually capped at 30–40 mph or 40–50 km/h) make them highly inefficient for standard highway hauling.
Typical Applications
- Civil engineering and dam construction
- Forestry and land clearing
- Remote infrastructure developments
- Mine and quarry overburden removal in soft-ground environments
Comparison of Different Types of Dump Trucks
| Type | Typical Payload Capacity | Top Speed (Loaded) | Best Terrain | Key Advantage | Key Disadvantage |
| Standard (Rigid) | 15–40 Tons | 60–80 km/h | Paved / Compacted Gravel | Cost-effective & Versatile | Poor flotation on soft ground |
| Heavy Duty | 30–60 Tons | 50–70 km/h | Highways & Quarries | High productivity per trip | Higher tire wear |
| Mining (Off-Highway) | 100–400+ Tons | 30–50 km/h | Haul Roads (Stable) | Extreme efficiency in bulk | Cannot travel on public roads |
| Articulated (ADT) | 25–50 Tons | 40–50 km/h | Muddy, Steep, Uneven | Superior traction & flexibility | High maintenance cost |

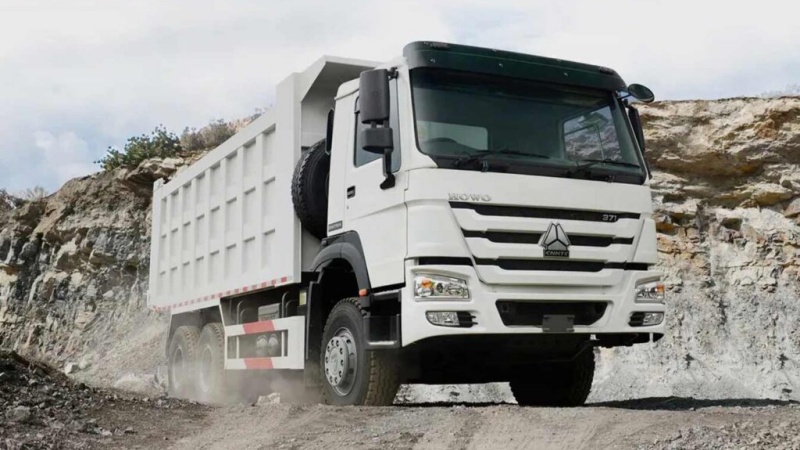

How to Choose the Right Dump Truck Type?
Effective fleet selection requires a balanced assessment of legal compliance, traction dynamics, and operational economics. Use this decision matrix to navigate your purchase:
Step 1: Regulatory Compliance (On-Road vs. Off-Road)
If your haul route involves public highways, your only viable options are Standard and Heavy Duty configurations, as they strictly adhere to axle-load and dimensional limits. Conversely, if your site is isolated, the unrestricted design of Mining and Articulated trucks unlocks significantly higher payload potential.
Step 2: Traction Requirements (Terrain Adaptability)
Ground pressure is a critical factor. For sites with poor load-bearing capacity or steep grades, the Articulated Dump Truck (ADT) excels due to its six-wheel-drive layout and articulated steering, which maintain ground contact even on uneven ruts. For stable, well-maintained haul roads, a rigid-frame truck offers lower rolling resistance and greater operator comfort at speed.
Step 3: Logistical Efficiency (Haul Distance)
Transport economics shift with distance. For hauls exceeding 5 kilometers, the higher cruising speed of a Heavy Duty rigid truck drastically cuts cycle intervals, justifying its higher price tag. For shorter leads under 5 kilometers, the modest Standard model prevents over-capitalization while adequately servicing compact job sites.
Beyond the Basics:
A prudent buyer must also weigh operating expenditures—specifically, cost-per-ton fuel consumption, tire lifespan under load, and the local supply chain for critical components—against stringent weight enforcement in your operating region to ensure sustainable long-term profitability.
Conclusion: 4 Types of Dump Trucks
Choosing the correct specification involves balancing payload, terrain, and total cost of ownership (TCO). If you are still unsure which type fits your fleet expansion plan, our engineering team is ready to provide a tailored configuration sheet based on your specific material density and hauling distance.
Contact our sales manager now for a personalized recommendation and a competitive factory-direct quote.
Frequently Asked Questions
Q1: What is the main difference between a rigid dump truck and an articulated dump truck (ADT)?
A: The primary difference lies in the chassis design and terrain adaptability. A rigid dump truck (such as a standard or heavy-duty model) uses a continuous, fixed frame that offers excellent stability and speed on flat, compacted roads. An articulated dump truck (ADT) features a flexible oscillating joint between the cab and the dump body. This design allows all wheels to maintain ground contact, providing superior traction and mobility in thick mud, steep slopes, and uneven, unpaved terrain.
Q2: Can mining dump trucks be driven on public highways?
A: No, mining dump trucks are strictly prohibited from traveling on public roads. Due to their massive payloads (ranging from 50 to over 400 tons) and giant physical dimensions, they exceed legal road width and weight limits. These off-highway vehicles are typically shipped in pieces and assembled directly on-site within mine pits or large quarries.
Q3: Why is torque more critical than horsepower for heavy duty dump trucks?
A: While horsepower determines top speed, high torque output (often exceeding 2,000 Nm) provides the raw pulling power needed for heavy hauling. Heavy-duty operations require the truck to start smoothly from a complete stop under full load and climb steep inclines without straining the drivetrain. High torque ensures excellent gradeability and fuel efficiency under maximum load.
Q4: Which type of dump truck offers the best return on investment for general residential construction?
A: The Standard Dump Truck (Rigid) is the most cost-effective choice for general residential and municipal projects. It requires a lower initial investment compared to specialized models, utilizes common truck chassis for easier maintenance, and offers the versatility needed to navigate standard urban roads while hauling everyday materials like sand, gravel, and soil.
Q5: What key factors should I check to ensure a dump truck complies with local regulations?
A: Before purchasing or deploying a dump truck, you must always evaluate three critical regulatory factors:
Gross Vehicle Weight (GVW) Limits: Ensure the truck’s total weight when fully loaded complies with local highway laws.
Axle Load Restrictions: Check if the axle configuration (e.g., 4×2, 6×4, 8×4) properly distributes weight to protect road surfaces.
Emission Standards: Verify that the engine configuration meets the required environmental compliance levels in your specific operating region.
