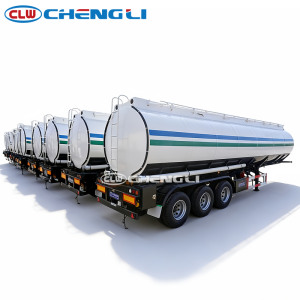

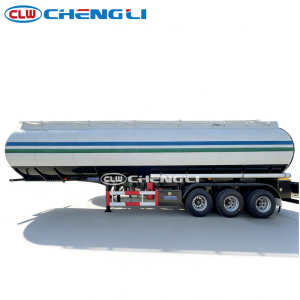

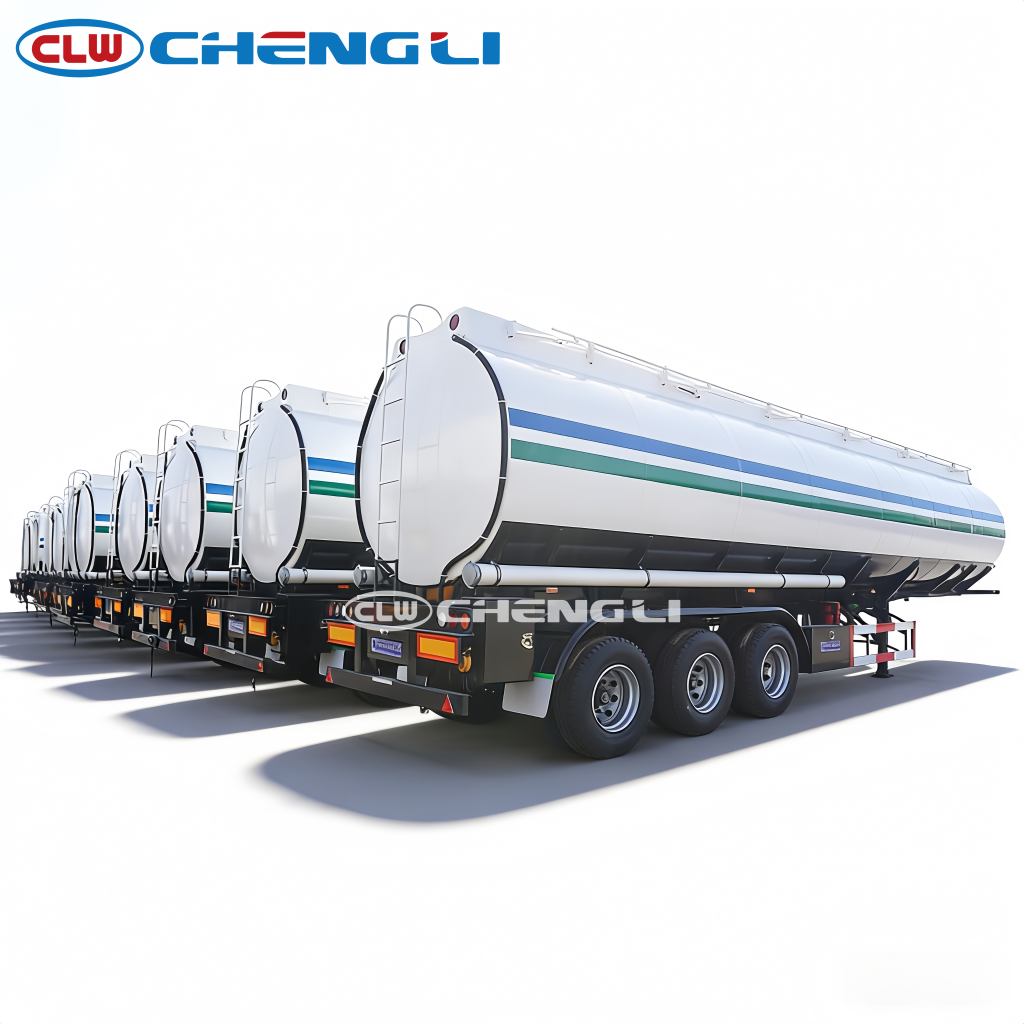

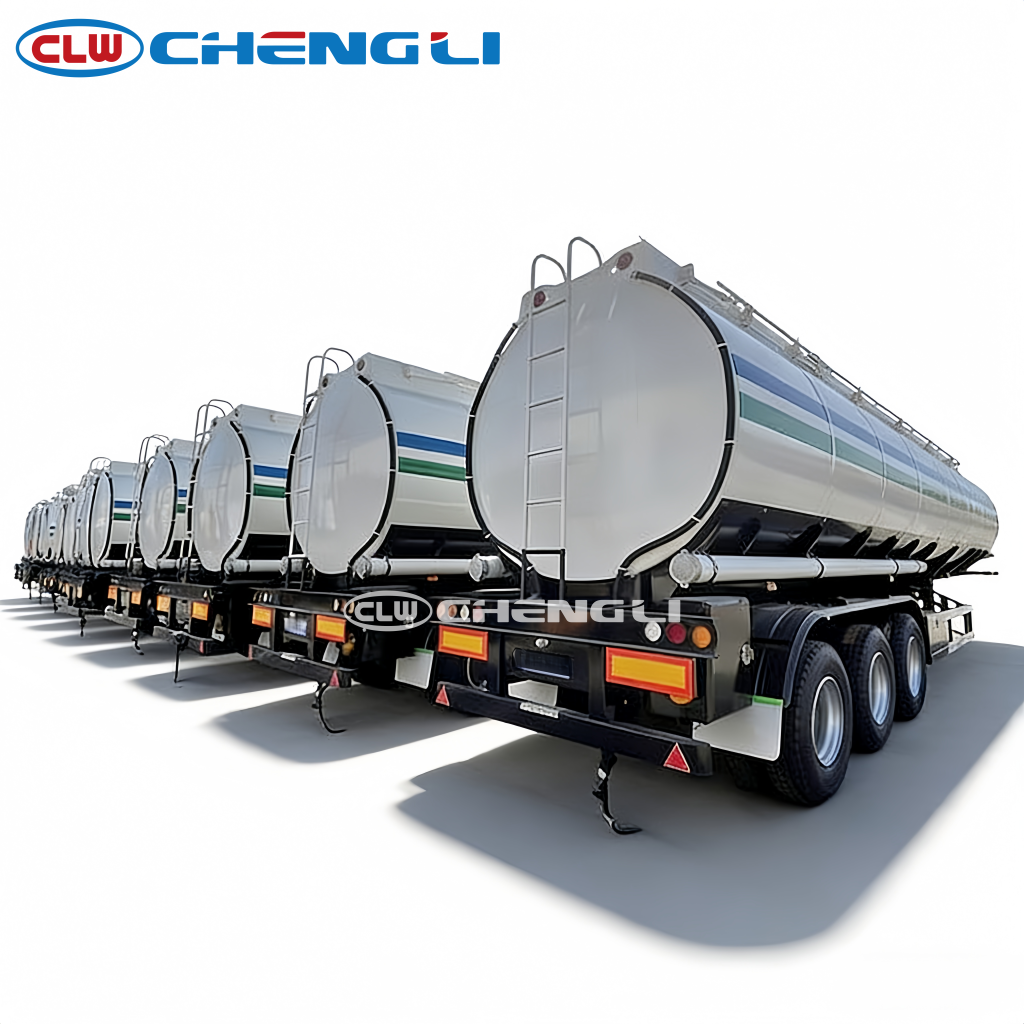

46CBM Fuel Tank Trailer 3 Axles with Aluminum Alloy Tanker for Petroleum Products Transportation

46CBM Fuel Tank Trailer is engineered for safe and efficient transportation of gasoline, diesel, and other petroleum products. Constructed from high-strength aluminum alloy 5083, the tank provides excellent corrosion resistance while reducing overall vehicle weight to maximize payload and fuel efficiency. Featuring 7 independent compartments, this trailer allows the simultaneous transport of multiple fuel types without cross-contamination. It comes equipped with Jialong aluminum manholes, pneumatic bottom valves, and European standard discharge valves, ensuring reliable and safe fuel loading and unloading operations. The chassis is built with a heavy-duty aluminum alloy 6061 I-beam, paired with BPW axles, BPW air suspension, and WABCO braking system, delivering superior stability, durability, and safety for long-distance hauling. With a 46,000-liter capacity, advanced vapor recovery system, and premium international components like JOST landing gear and kingpin, this 46CBM Fuel Tank Trailer is ideal for fuel transportation, oil depots, gas stations, and logistics fleets globally.

FEATURES

1. High Capacity 46CBM Fuel Tank Trailer – 46,000-liter volume with 7 independent compartments for safe multi-fuel transportation, ideal for gasoline and diesel tanker operations.

2. Premium Aluminum Alloy Construction – Fuel tanker made of 5083 aluminum alloy with 7mm thick end plates, lightweight yet corrosion-resistant, perfect for aluminum fuel tank trailers.
3. Advanced Loading & Unloading System – Equipped with Jialong aluminum manholes, pneumatic bottom valves, and European-type discharge valves, ensuring efficient and safe fuel transfer operations.
4. Integrated Vapor Recovery System – Reduces fuel loss and environmental impact, suitable for oil and gasoline transport.
5. Premium Components – Includes JOST 2-inch kingpin, landing gear, aluminum wheels, and tubeless tires, ensuring long-term durability for 46CBM Fuel Tank Trailers.

SPECIFICATIONS

Dimension
Model46CBM Fuel Tank Trailer
Tare weight
7500kgs
Tank
Shape
Square round shape
Total volume
46000L
Tank body material
Aluminum alloy 5083 5mm
Tank end plate
Aluminum alloy 5083 7mm
Compartment
7 independent compartments
Manhole cover
Aluminum manhole cover, China brand Jialong

The above mentioned figures are approximate.
